Printing and sheet lamination
Panac's printing process can print various ink material on necessary parts of film or plastic plate.
Our printing machines are suitable for multifaceted printing and multilayaer printing. Responding to customer's request, we can also laminate various sheets on printed film.
We can process film materials into all sorts of shapes and sizes.
Feature FEATURE
-

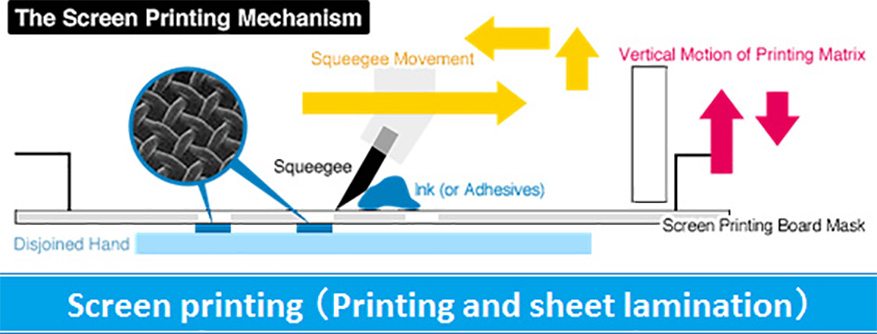

Panac's screen printing system is suitable for printing various types of small quantities.
-
The screen printing system can print on various films, plastic boards, from general materials to optical materials.
-
The screen printing system is done in a clean room of class 10,000.
Processing Details PROCESSING DETAILS
| PRINTING | |
|---|---|
| Size | Single-layered printing: max. 800 X 800mm Multi-layered printing: max. 650 X 650mm |
| Printing Thickness | 4～200μ |
| Drying Temp. | normal temperature ~ 200℃ |
| Processing Material Thickness | 38μ～2mm |
| SHEET LAMINATION | |
|---|---|
| Size | max. 420 X 460mm |
| Laminated Film Thickness | 50～500μm |
| Examples of Use | 1. film on film 2. film on plastic sheet 3. film on glass |
